Autopista Oaxaca-Puerto (2015-07-09 new profiles)

Select image thumbnail for large WWW version

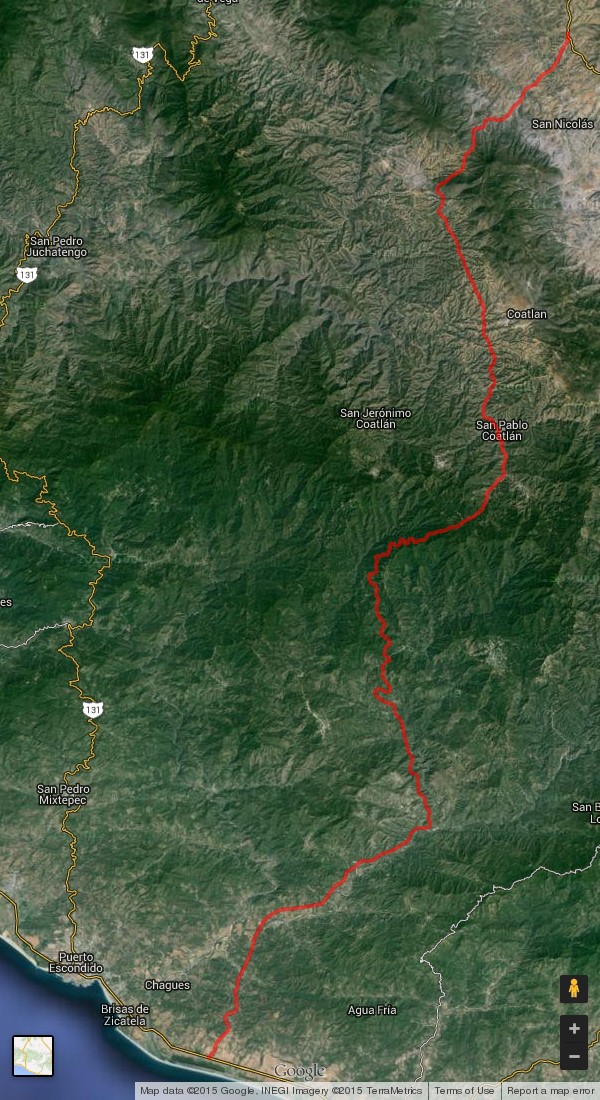

autopista-sat-1 (600x1100 240 KB)

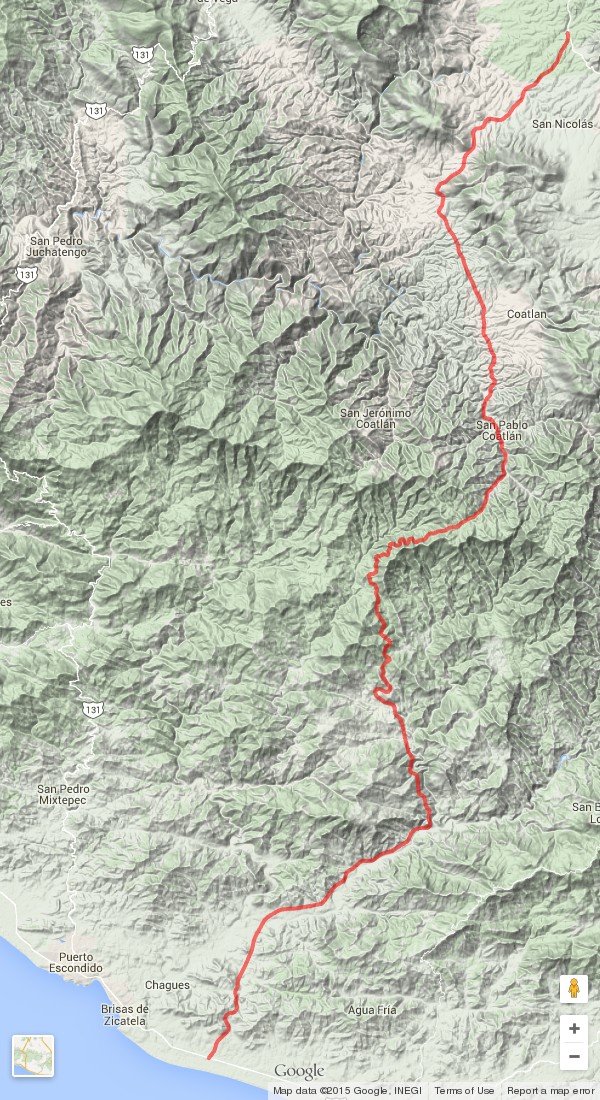

autopista-terra-1 (600x1100 280 KB)

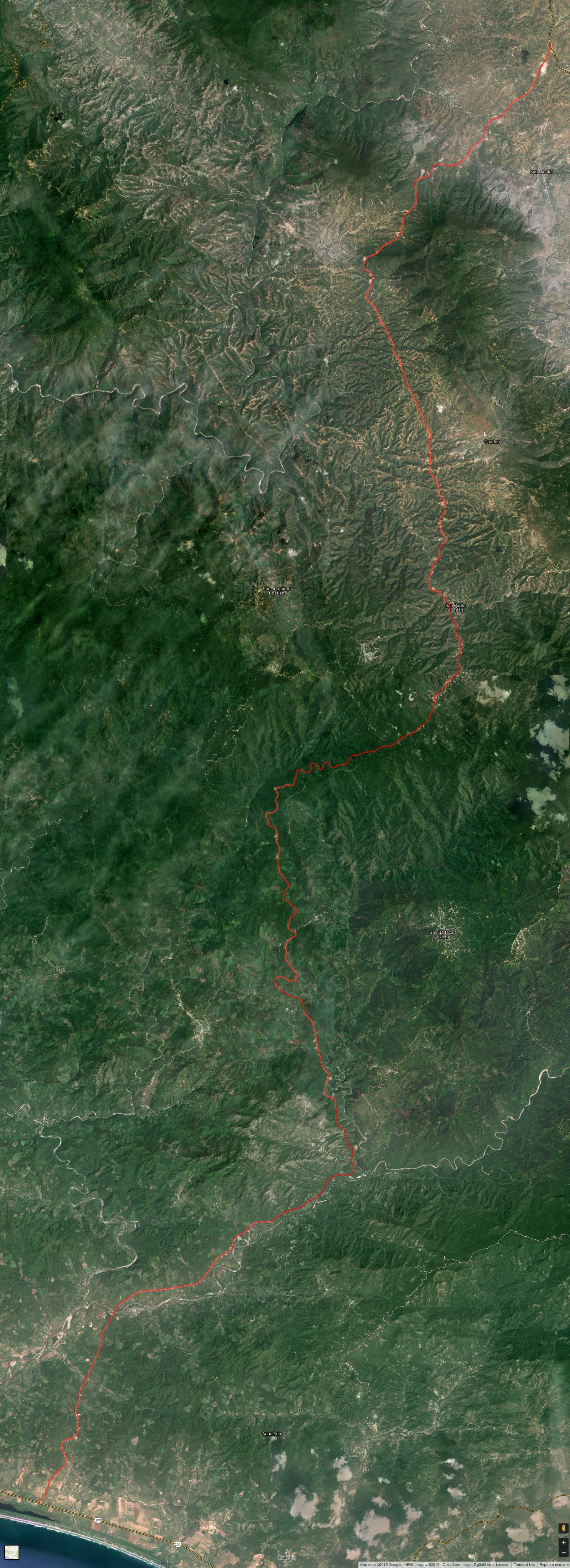

autopista-sat-2 (1600x4400 2 MB)

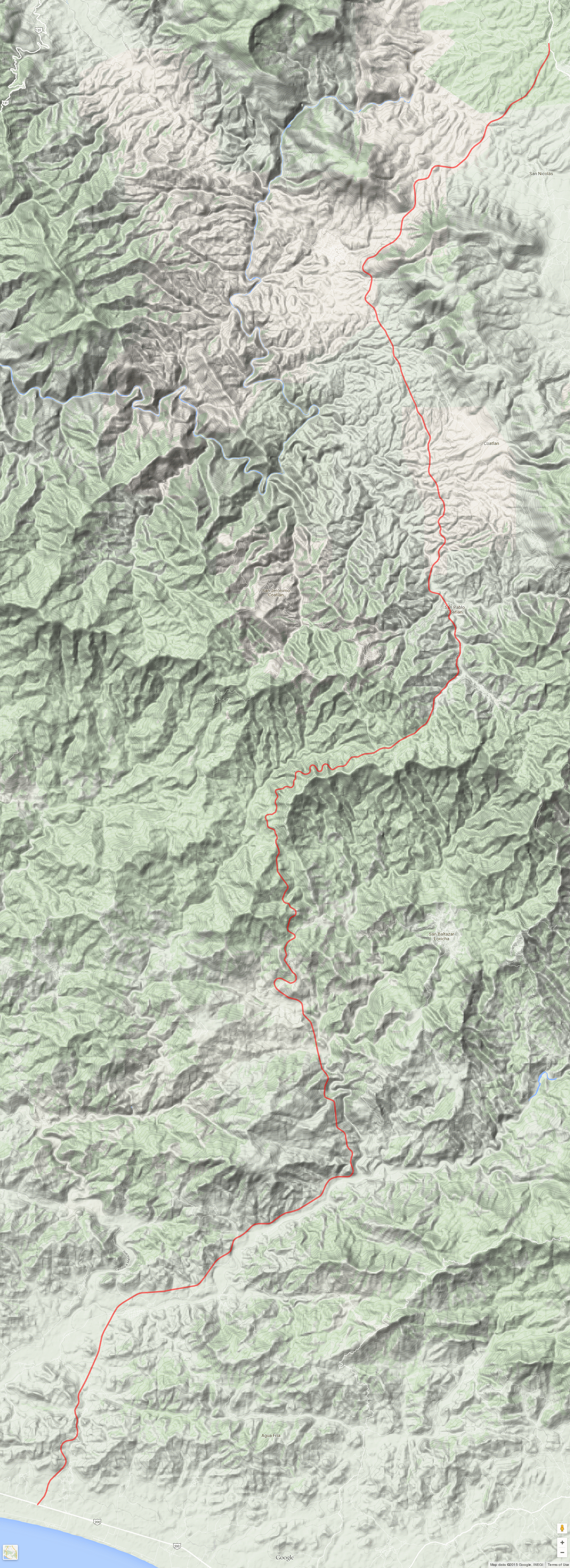

autopista-terra-2 (1600x4400 4.1 MB)

Google Maps Autopista Route

These different maps show the route for the new autopista from Oaxaca to Puerto Escondido which is now being constructed. The left two maps are smaller scale and the right two are larger scale and are correspondingly much bigger. The left maps show a satellite view, and the right maps show a terrain view. The page bottom left image gives the general route alignment and reference to surrounding communities. The existing road from Oaxaca to Barranca Larga, which is being upgraded, is not shown on the above maps.

Google Maps KML File

Check out the Oaxaca Carretera KML File. (Views on Map-Terrain to help understand why it will not be done this decade.)
[The middle section now is largely visible with construction and clearing. I realigned the route with with the satellite image, as the whole thing seemed majorly misaligned, which was definitely not the case with the south and north sections. I guessed that the original road map was probably more faulty than Google Map.]

Elevation and Gradients

I spent an inordinate amount of time (again!) working on the elevation plots. As you may notice, there is a steep grade up the mountains, a steady 5% for 30 km. There is an excellent site which makes elevation charts and plots from coordinate data. Their elevation chart (below centre) is neat, but it logically follows the terrain. I tried several linear filters to even out the road gradient, but the results were not good. I finally tried first order linear regression on 11 points (5 before & 5 after) which worked wonderfully. This should be much closer to reality, although I imagine there are still significant deviations. The PDF charts are linked below right.

WGS-84 Distance Correction

I also luckily found a Matlab WGS84 function:

function s = vdist(lat1,lon1,lat2,lon2)
% VDIST - compute distance between points on the WGS-84 ellipsoidal Earth
% to within a few millimeters of accuracy using Vincenty's algorithm

By transcribing this function to Rexx, I adapted the coordinate distance calculations to to WGS84, which surprisingly added 1.5 km (2B checked) to the autopista length. I also thought the gradient angle might make more difference, but it didn't. As a first approximation for the principal 30 km rise:
|X,Y,Z| = |30000,1500| -> sqrt(30000**2+1500**2)-30000=37.47. So, a 1500 m rise over 30 km would only be 37 m longer, which correlates adequately to the actual 90 m difference.

Calculations (km) Linear WGS84 WGS84 + Grade
Straight Route 79.331 79.326 79.340
Actual Route 104.220 105.777 105.860

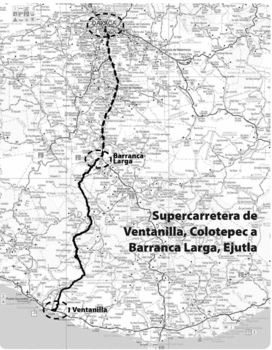

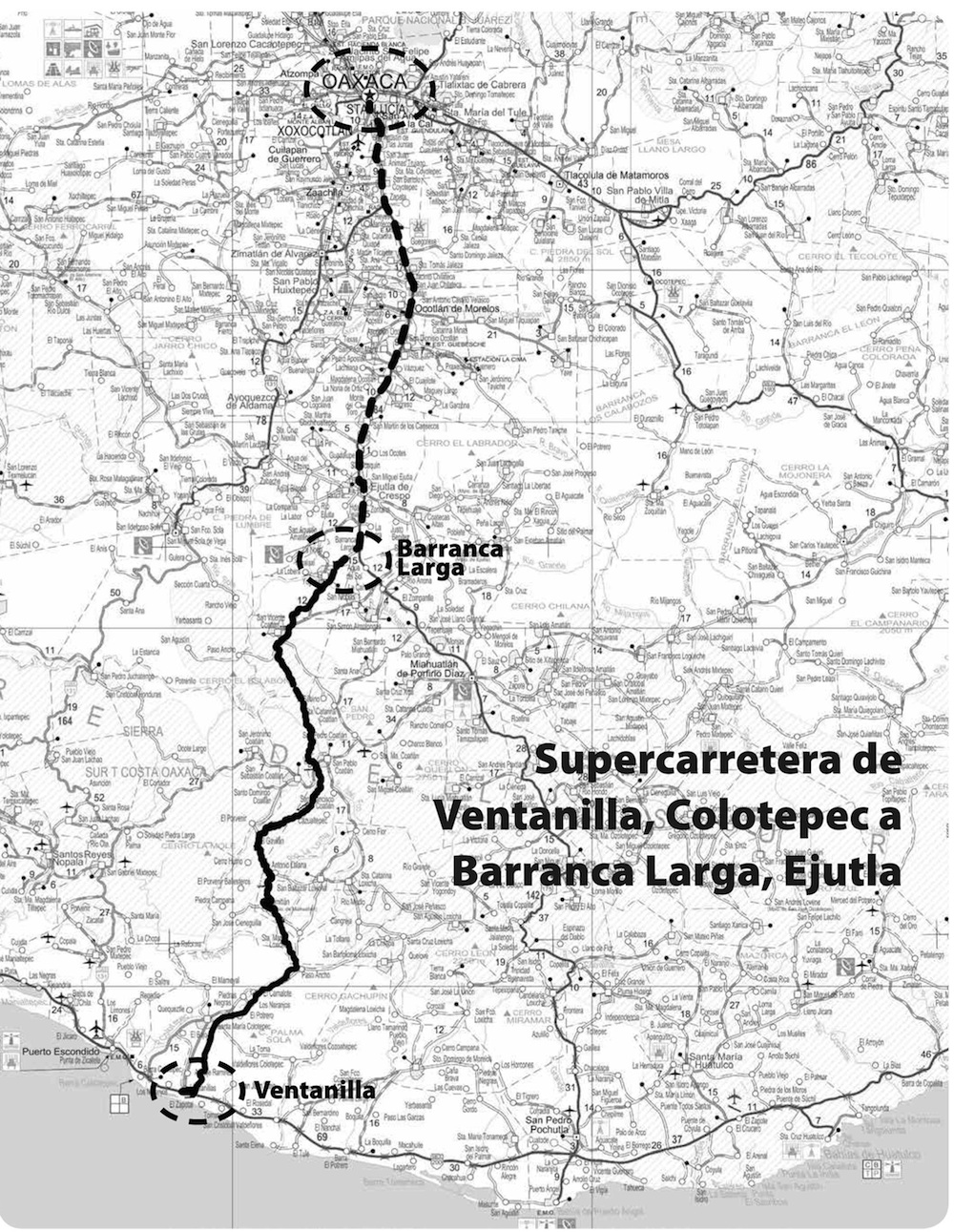

Route map (1000x1291 600 KB)

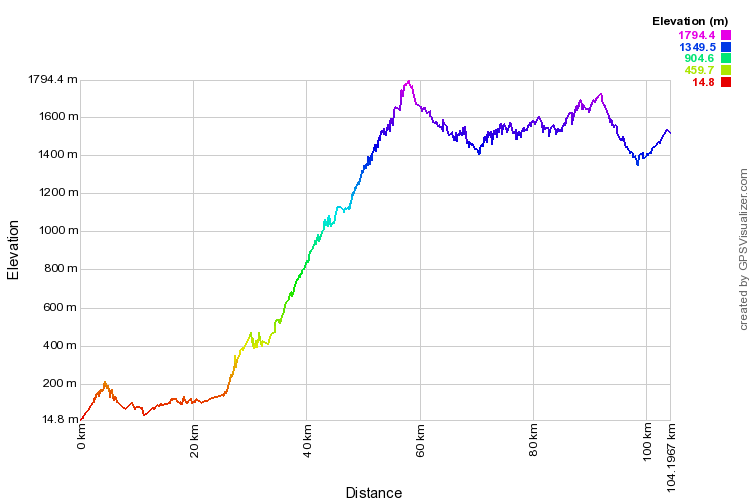

gpsvisualizer profile (750x500 24 KB)

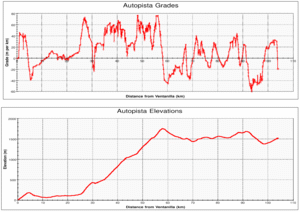

Autopista profile & grade (PDF 30 KB)
